    Electrical & Electronics  Components

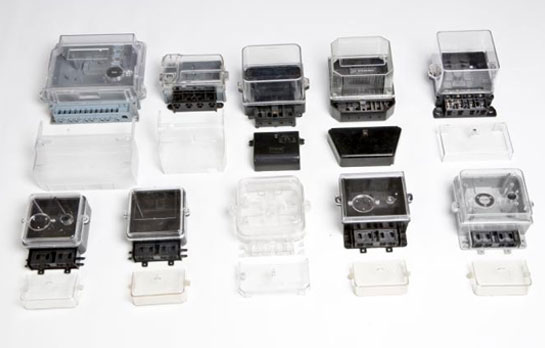

Meter Housing
Components for Electrical & Electronics Energy Meters

Base,Cover Terminal Cover,Terminal Block

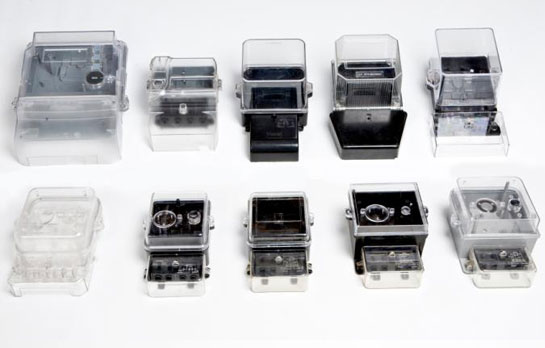

Meter Housing
Components for Electrical & Electronics Energy Meters

Base,Cover Terminal Cover,Terminal Block

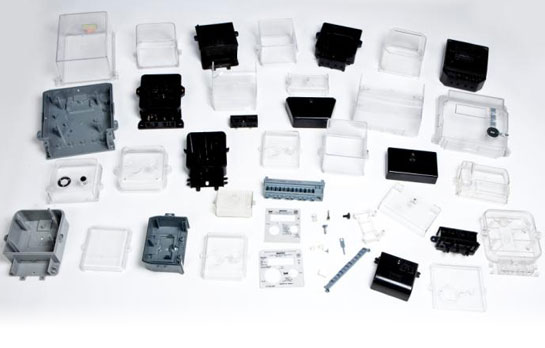

Meter Housing
Components for Electrical & Electronics Energy Meters

Base, Cover Terminal Cover, Terminal Block, Name Plate, LCD Bezal, Knob.

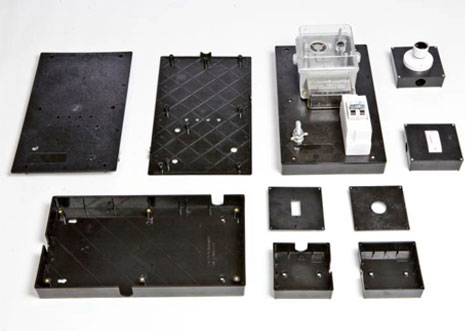

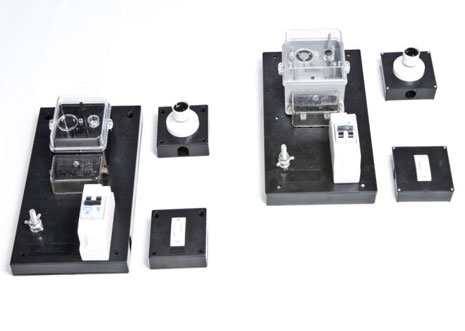

BPL Kits
Components for RGGVY Projects

BPL Kit Top Opening Type Meter Board,Batten Holder Board, Switch Board.

BPL Kits
Components for RGGVY Projects

Meter Board,Batten Holder Board, Switch Board.

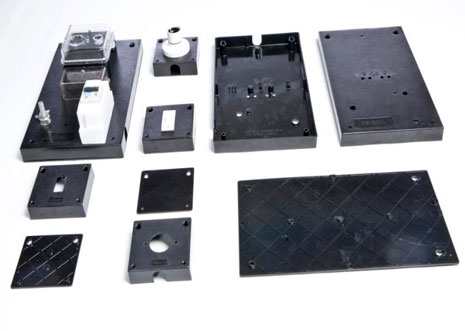

BPL Kits
Components for RGGVY Projects

BPL Kit Bottom Opening Type Meter Board, Batten Holder Board, Switch
Board.

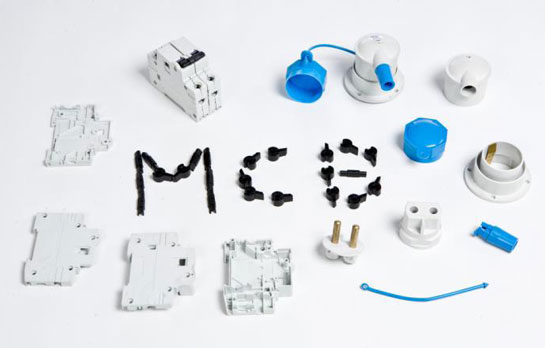

M.C.B & 2 Pin Sockets and etc.
Component For Electrical Industry

MCB ,Industrial Socket.

M.C.B & 2 Pin Sockets and etc.

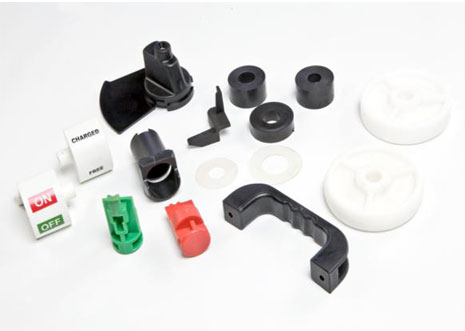

Component For Panel Box

Truck Wheel, Buffer, Handle On Off Indicator, Push   Button Housing, Lever, Interlock Handle.

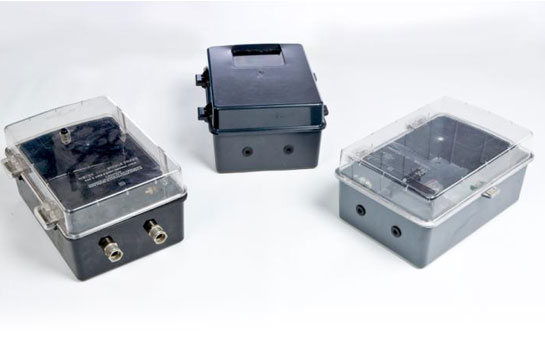

Meter Enclosure Type One
Our company is involved in manufacturing wide variety of Meter Enclosure Type One to our valuable clients. Manufactured with the latest advanced technologies, our products are recommended for their high quality and efficiency. We also offer customization services to our clients. Furthermore, we offer them at reasonable prices.

Technical Specification
  Size (A)300X200X130 (B)300X200X140 (C)300X200X145
  Material&Colour Base: PC Transparent/OPEC PC Transparent
Cover: PC Transparent
  Feature:   In&OutCable  (1)Metal Cable  Gland  (2)Plastic Cable  Gland  (3)Rubber  Grommet
  Protection for   water &
  harmfull object
 (1) Rubber Cord  (2) Rubber Pipe
  Locking   Arrangement  (1) 2 Nos Snap  Lock  (2)1 No U Clamp  with wire sealing  arrangement  (3)3 No 'U' Clamp  with wire sealing  arrangement
  Meter
  Operating
 (1) With Out Push  Button(No Out  Side Operating  System)  (2)1 No Push  Button  (3)4 Nos Push  Button
  Earting   Arrangement  (1)Available-(1.1)
 MS Earthing Bolt,  Nut, Spring  Washer,  Washer(1.2)Brass  Earthing Bolt, Nut,  Spring Washer,  Washer
 (2)Not Available
  Meter Mounting  (1) Plastic  Adjustable  I Brecket  (2)3 Nos Meter  Mounting Pillar  (With 3 Nos No  8x13 STS
  Meter Opening  (1) 2 Nos MS
 Hinge
 (2) 2 Nos Steel
 Hinge
 (3) 2 Nos Plastic
 Hinge
  Wall Mounting  4 Nos Round Hole
 At 4 Corner Of  Base(With 4 Nos  No.8x25 STS)

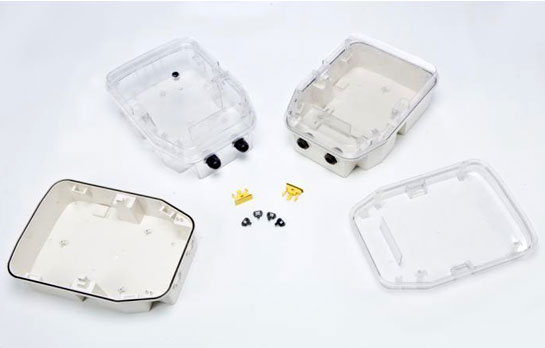

Meter Enclosure Type Two
The expert team of our company offers wide variety of Meter Enclosure Type Two to our respected clients. Fabricated using high quality raw material, these are appreciated for their efficiency, durability, reliability and tendency. Depending upon the specific requirement of our clients, we also offer customization services to our clients at competitive prices.

Technical Specification
  Size 315X225X115
  Material&Colour
 Base:(1)PC virgin
 (1.1)Transparent
 (1.1.1)V2 (1.1.2.)
 V0 (1.2) OPEC
 Cover: (1)PC
 virginTransparent
 (1.2)vo
(2)PC SEMI virgin
 (2.1)Transparent
 (2.2)OPEC

 (2)PC SEMI virgin
 Transparent
  Feature:   In&OutCable  (1)Metal Cable  Gland  (2)Plastic Cable  Gland  (3)Rubber  Grommet
  Protection for   water &
  harmfull object
 (1) Rubber Cord  (2) PVC Pipe
  Locking   Arrangement  4 Nos Snap Lock
 with 2 NOS extra
 side lock with
 wire sealing
 arrangement

  Meter
  Operating
 (1) With Out push
 Button(No Out
 Side Operating
 System)

  Earting   Arrangement  (1)Available-(1.1)
 MS Earthing Bolt,  Nut, Spring  Washer,  Washer(1.2)Brass  Earthing Bolt, Nut,  Spring Washer,  Washer
 (2)Not Available
  Meter Mounting  (1) Plastic  Adjustable  I Brecket  (2)3 Nos Meter  Mounting Pillar  (With 3 Nos No  8x13 STS
  Meter Opening  No Opening
 System

  Wall Mounting  4 Nos Round Hole
 At 4 Corner Of  Base(With 4 Nos  No.8x25 STS)

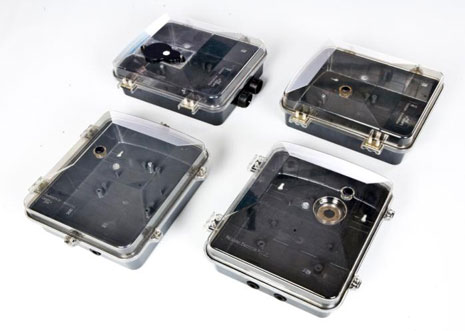

Meter Enclosure Type Three
Our company is reliable in offering Meter Enclosure Type Three to our esteemed clients. Made using fine quality raw material, these are procured from reputed vendors. Our range is widely appreciated   for durability and strength. Available in varied forms and sizes, we also offer personalized services to our clients at competitive prices.
Technical Specification
  Size 245X200X100
  Material&Colour
 Base:(1)PC virgin
 (1.1)Transparent
 (1.1.1)V2 (1.1.2.)
 V0 (1.2) OPEC
 Cover: (1)PC
 virginTransparent
 (1.2)vo
(2)PC SEMI virgin
 (2.1)Transparent
 (2.2)OPEC

 (2)PC SEMI virgin
 Transparent
  Feature:   In&OutCable  (1)Metal Cable  Gland  (2)Plastic Cable  Gland  (3)Rubber  Grommet
  Protection for   water &
  harmfull object
 (1) Rubber Cord  (2) PVC Pipe
  Locking   Arrangement  4 NOS M4 Screw
 & Nut With Wire
 Sealing

  Meter
  Operating
 1 No Push Button
  Earting   Arrangement  (1)Available-(1.1)
 MS Earthing Bolt,  Nut, Spring  Washer,  Washer(1.2)Brass  Earthing Bolt, Nut,  Spring Washer,  Washer
 (2)Not Available
  Meter Mounting  3 Nos Meter
 Mounting Pillar
 (WITH 3 NOS NO
 8X13 STS)

  Meter Opening  (1) 2 Nos MS
 Hinge
 (2) 2 Nos Steel
 Hinge
 (3) 2 Nos Plastic
 Hinge
  Wall Mounting  4 Nos Round Hole
 At 4 Corner Of  Base(With 4 Nos  No.8x25 STS)
 2 Nos Round Hole
 at Bottom Corner
 of base(WITH 4
 NOS NO.8X25
 STS)

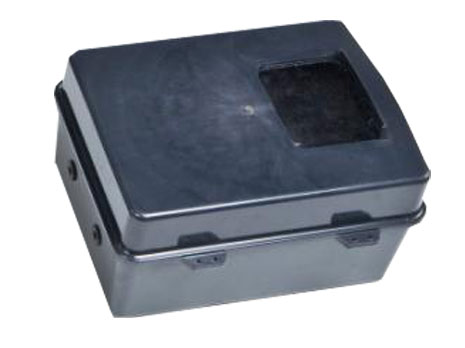

Meter Enclosure Type Four
Efficiently used for varied boring purposes, we offer wide variety of Meter Enclosure Type Four to our esteemed and valuable clients. Manufactured using superior quality raw material, theses are appreciated high for efficiency and durability. Depending upon the specific requirement of our clients, we also offer personalized solutions to our client at reasonable rates.
Technical Specification
  Size 245X200X100
  Material&Colour
 Base:(1)PC virgin
 (1.1)Transparent
 (1.1.1)V2 (1.1.2.)
 V0 (1.2) OPEC
 Cover: (1)PC
 virginTransparent
 (1.2)vo
(2)PC SEMI virgin
 (2.1)Transparent
 (2.2)OPEC

 (2)PC SEMI virgin
 Transparent
  Feature:   In&OutCable  (1)Metal Cable  Gland  (2)Plastic Cable  Gland  (3)Rubber  Grommet
  Protection for   water &
  harmfull object
 (1) Rubber Cord  (2) PVC Pipe
  Locking   Arrangement  4 NOS M4 Screw
 & Nut With Wire
 Sealing

  Meter
  Operating
 1 No Push Button
  Earting   Arrangement  (1)Available-(1.1)
 MS Earthing Bolt,  Nut, Spring  Washer,  Washer(1.2)Brass  Earthing Bolt, Nut,  Spring Washer,  Washer
 (2)Not Available
  Meter Mounting  3 Nos Meter
 Mounting Pillar
 (WITH 3 NOS NO
 8X13 STS)

  Meter Opening  (1) 2 Nos MS
 Hinge
 (2) 2 Nos Steel
 Hinge
 (3) 2 Nos Plastic
 Hinge
  Wall Mounting  4 Nos Round Hole
 At 4 Corner Of  Base(With 4 Nos  No.8x25 STS)
 2 Nos Round Hole
 at Bottom Corner
 of base(WITH 4
 NOS NO.8X25
 STS)



Meter Enclosure Type Five

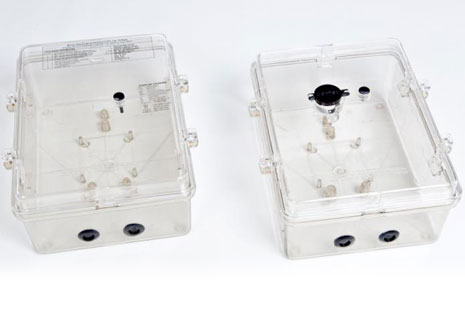

Meter Enclosure Type Six
