Components for Electrical & Electronics Energy Meters

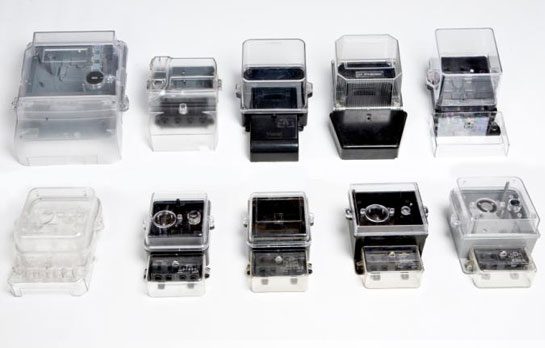

Meter Housing
- Base
- Cover Terminal Cover
- Terminal Block
Electrical & Electronics Components
Components for Electrical & Electronics Energy Meters · Components for RGGVY Projects · Component For Electrical Industry · Component For Panel Box
Components for Electrical & Electronics Energy Meters
Meter Housing
Parts in this group
- Base
- Cover Terminal Cover
- Terminal Block
Components
12 more in this range
The other component groups in this family. Tap any photograph to enlarge it.
03
Components for Electrical & Electronics Energy Meters
Meter Housing
- Base
- Cover Terminal Cover
- Terminal Block
- Name Plate
- LCD Bezal
- Knob

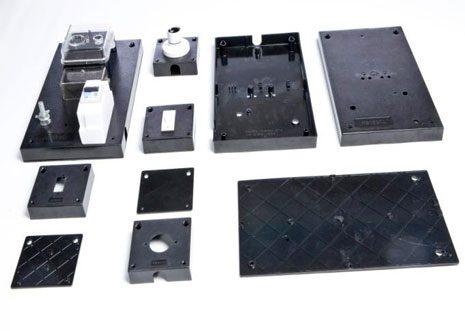

04
Components for RGGVY Projects
BPL Kits
- BPL Kit Top Opening Type Meter Board
- Batten Holder Board
- Switch Board

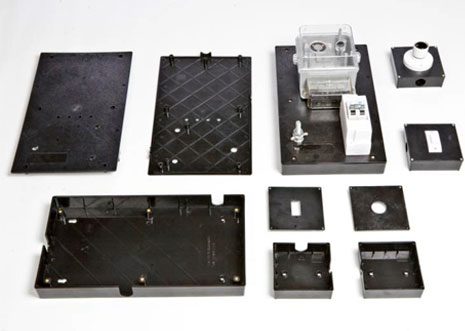

05
Components for RGGVY Projects
BPL Kits
- Meter Board
- Batten Holder Board
- Switch Board

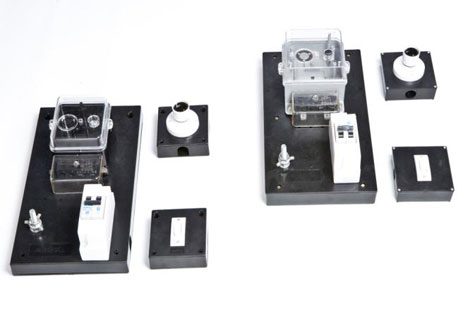

06
Components for RGGVY Projects
BPL Kits
- BPL Kit Bottom Opening Type Meter Board
- Batten Holder Board
- Switch Board
07

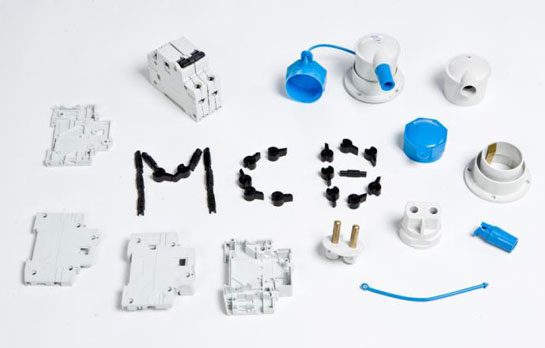

Component For Electrical Industry
M.C.B & 2 Pin Sockets and etc.
- MCB
- Industrial Socket
08

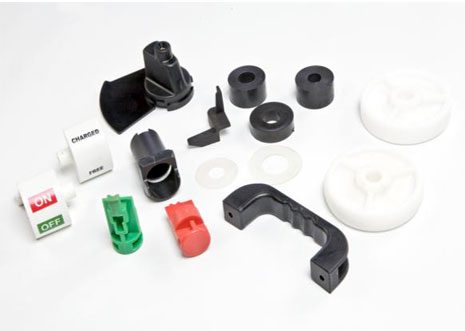

Component For Panel Box
M.C.B & 2 Pin Sockets and etc.
- Truck Wheel
- Buffer
- Handle On Off Indicator
- Push Button Housing
- Lever
- Interlock Handle
09

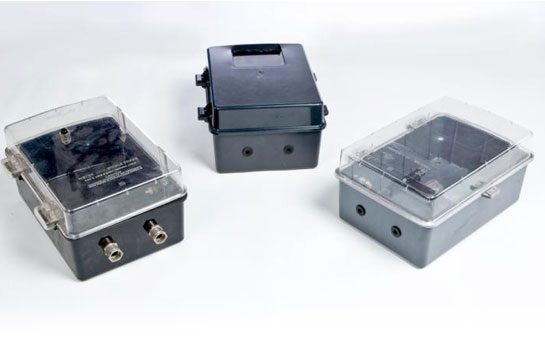

Meter Enclosure Type One
Our company is involved in manufacturing wide variety of Meter Enclosure Type One to our valuable clients. Manufactured with the latest advanced technologies, our products are recommended for their high quality and efficiency. We also offer customization services to our clients. Furthermore, we offer them at reasonable prices.
10

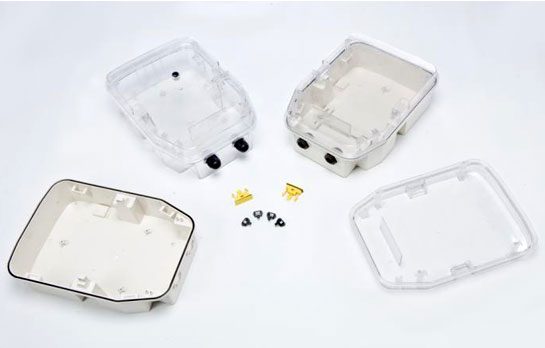

Meter Enclosure Type Two
The expert team of our company offers wide variety of Meter Enclosure Type Two to our respected clients. Fabricated using high quality raw material, these are appreciated for their efficiency, durability, reliability and tendency. Depending upon the specific requirement of our clients, we also offer customization services to our clients at competitive prices.
11

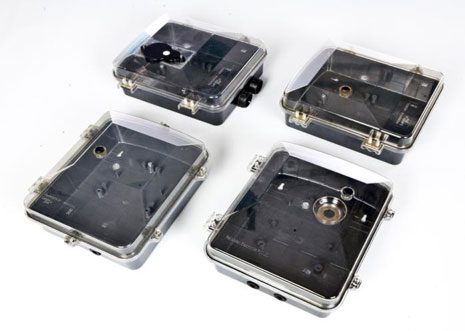

Meter Enclosure Type Three
Our company is reliable in offering Meter Enclosure Type Three to our esteemed clients. Made using fine quality raw material, these are procured from reputed vendors. Our range is widely appreciated for durability and strength. Available in varied forms and sizes, we also offer personalized services to our clients at competitive prices.
12

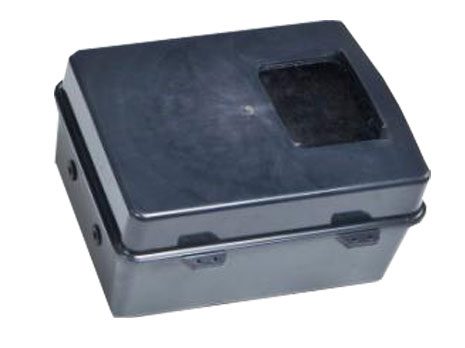

Meter Enclosure Type Four
Efficiently used for varied boring purposes, we offer wide variety of Meter Enclosure Type Four to our esteemed and valuable clients. Manufactured using superior quality raw material, theses are appreciated high for efficiency and durability. Depending upon the specific requirement of our clients, we also offer personalized solutions to our client at reasonable rates.
13

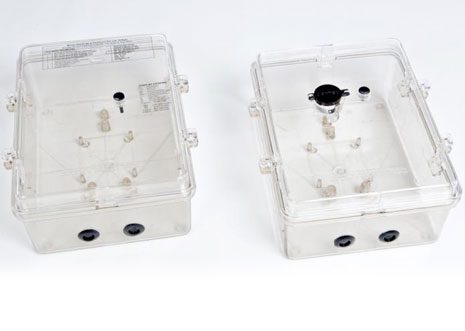

Meter Enclosure Type Six
Technical Data
Meter enclosure specifications
Sizes, materials, locking, mounting and earthing options for each enclosure type.
Meter Enclosure Type One
Our company is involved in manufacturing wide variety of Meter Enclosure Type One to our valuable clients. Manufactured with the latest advanced technologies, our products are recommended for their high quality and efficiency. We also offer customization services to our clients. Furthermore, we offer them at reasonable prices.
| Size | (A)300X200X130 (B)300X200X140 (C)300X200X145 |
|---|---|
| Material&Colour | Base: PC Transparent/OPEC PC Transparent Cover: PC Transparent |
| Feature: In&OutCable | (1)Metal Cable Gland (2)Plastic Cable Gland (3)Rubber Grommet |
| Protection for water & harmfull object | (1) Rubber Cord (2) Rubber Pipe |
| Locking Arrangement | (1) 2 Nos Snap Lock (2)1 No U Clamp with wire sealing arrangement (3)3 No 'U' Clamp with wire sealing arrangement |
| Meter Operating | (1) With Out Push Button(No Out Side Operating System) (2)1 No Push Button (3)4 Nos Push Button |
| Earting Arrangement | (1)Available-(1.1) MS Earthing Bolt, Nut, Spring Washer, Washer(1.2)Brass Earthing Bolt, Nut, Spring Washer, Washer (2)Not Available |
| Meter Mounting | (1) Plastic Adjustable I Brecket (2)3 Nos Meter Mounting Pillar (With 3 Nos No 8x13 STS |
| Meter Opening | (1) 2 Nos MS Hinge (2) 2 Nos Steel Hinge (3) 2 Nos Plastic Hinge |
| Wall Mounting | 4 Nos Round Hole At 4 Corner Of Base(With 4 Nos No.8x25 STS) |
Meter Enclosure Type Two
The expert team of our company offers wide variety of Meter Enclosure Type Two to our respected clients. Fabricated using high quality raw material, these are appreciated for their efficiency, durability, reliability and tendency. Depending upon the specific requirement of our clients, we also offer customization services to our clients at competitive prices.
| Size | 315X225X115 |
|---|---|
| Material&Colour | Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent |
| Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo | (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent |
| Feature: In&OutCable | (1)Metal Cable Gland (2)Plastic Cable Gland (3)Rubber Grommet |
| Protection for water & harmfull object | (1) Rubber Cord (2) PVC Pipe |
| Locking Arrangement | 4 Nos Snap Lock with 2 NOS extra side lock with wire sealing arrangement |
| Meter Operating | (1) With Out push Button(No Out Side Operating System) |
| Earting Arrangement | (1)Available-(1.1) MS Earthing Bolt, Nut, Spring Washer, Washer(1.2)Brass Earthing Bolt, Nut, Spring Washer, Washer (2)Not Available |
| Meter Mounting | (1) Plastic Adjustable I Brecket (2)3 Nos Meter Mounting Pillar (With 3 Nos No 8x13 STS |
| Meter Opening | No Opening System |
| Wall Mounting | 4 Nos Round Hole At 4 Corner Of Base(With 4 Nos No.8x25 STS) |
Meter Enclosure Type Three
Our company is reliable in offering Meter Enclosure Type Three to our esteemed clients. Made using fine quality raw material, these are procured from reputed vendors. Our range is widely appreciated for durability and strength. Available in varied forms and sizes, we also offer personalized services to our clients at competitive prices.
| Size | 245X200X100 |
|---|---|
| Material&Colour | Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent |
| Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo | (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent |
| Feature: In&OutCable | (1)Metal Cable Gland (2)Plastic Cable Gland (3)Rubber Grommet |
| Protection for water & harmfull object | (1) Rubber Cord (2) PVC Pipe |
| Locking Arrangement | 4 NOS M4 Screw & Nut With Wire Sealing |
| Meter Operating | 1 No Push Button |
| Earting Arrangement | (1)Available-(1.1) MS Earthing Bolt, Nut, Spring Washer, Washer(1.2)Brass Earthing Bolt, Nut, Spring Washer, Washer (2)Not Available |
| Meter Mounting | 3 Nos Meter Mounting Pillar (WITH 3 NOS NO 8X13 STS) |
| Meter Opening | (1) 2 Nos MS Hinge (2) 2 Nos Steel Hinge (3) 2 Nos Plastic Hinge |
| Wall Mounting | 4 Nos Round Hole At 4 Corner Of Base(With 4 Nos No.8x25 STS) 2 Nos Round Hole at Bottom Corner of base(WITH 4 NOS NO.8X25 STS) |
Meter Enclosure Type Four
Efficiently used for varied boring purposes, we offer wide variety of Meter Enclosure Type Four to our esteemed and valuable clients. Manufactured using superior quality raw material, theses are appreciated high for efficiency and durability. Depending upon the specific requirement of our clients, we also offer personalized solutions to our client at reasonable rates.
| Size | 245X200X100 |
|---|---|
| Material&Colour | Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent |
| Base:(1)PC virgin (1.1)Transparent (1.1.1)V2 (1.1.2.) V0 (1.2) OPEC Cover: (1)PC virginTransparent (1.2)vo | (2)PC SEMI virgin (2.1)Transparent (2.2)OPEC (2)PC SEMI virgin Transparent |
| Feature: In&OutCable | (1)Metal Cable Gland (2)Plastic Cable Gland (3)Rubber Grommet |
| Protection for water & harmfull object | (1) Rubber Cord (2) PVC Pipe |
| Locking Arrangement | 4 NOS M4 Screw & Nut With Wire Sealing |
| Meter Operating | 1 No Push Button |
| Earting Arrangement | (1)Available-(1.1) MS Earthing Bolt, Nut, Spring Washer, Washer(1.2)Brass Earthing Bolt, Nut, Spring Washer, Washer (2)Not Available |
| Meter Mounting | 3 Nos Meter Mounting Pillar (WITH 3 NOS NO 8X13 STS) |
| Meter Opening | (1) 2 Nos MS Hinge (2) 2 Nos Steel Hinge (3) 2 Nos Plastic Hinge |
| Wall Mounting | 4 Nos Round Hole At 4 Corner Of Base(With 4 Nos No.8x25 STS) 2 Nos Round Hole at Bottom Corner of base(WITH 4 NOS NO.8X25 STS) |
Capability
How these parts are made
Every process the group runs in-house — from tool building through moulding and fabrication to finishing.
Injection MouldingTool BuildingHeat SealingAssembliesPaintingHot StampingPad PaintingDetailed Engineering
Let's build it together
Need these components?
Tell us the volumes, material and finish you need and we will quote.
